Shadow
1. Animation
Mocap for Animators
We help small studios create high-quality titles by providing them production ready full-body motion capture.
·Record production quality animation in minutes
·Unlimited capture space
·Durable, high-quality wearable parts
·Flexible, pay as you go license options
Untether your mocap sessions
Mobile device compatible
Live-stream and record on any Wi-Fi enabled device. Use your tablet and smartphone.
Supports major platforms
Woks on Windows, macOS, and Linux. App for iOS and Android included.
Record data anywhere
Capture all day to built-in storage. Drag and drop the animation clips to your computer.
Use your choice of tools
No need to learn a proprietary software suite. Shadow plugs seamlessly into your favorite content creation apps and game engines.
Software Support
Shadow supports motion capture data export to the following software packages. Visit our File Formats and Downloads pages for more details and example files.
|
Product |
File Format |
|
Maya |
Plug-in, FBX |
|
MotionBuilder |
FBX |
|
3ds Max |
FBX |
|
FBX Review |
FBX |
|
Houdini |
FBX |
|
Cinema 4D |
FBX |
|
LightWave |
FBX, BVH |
|
Blender |
FBX, BVH |
|
iClone |
FBX, BVH |
|
Unity |
FBX |
|
Unreal Engine |
FBX |
|
CRYENGINE |
FBX |
|
Lumberyard |
FBX |
|
Stingray |
FBX |
|
Visual3D |
C3D |
|
MLSviewer |
C3D |
|
Mokka |
C3D |
|
MATLAB |
M-file script library, CSV |
|
Excel |
CSV |

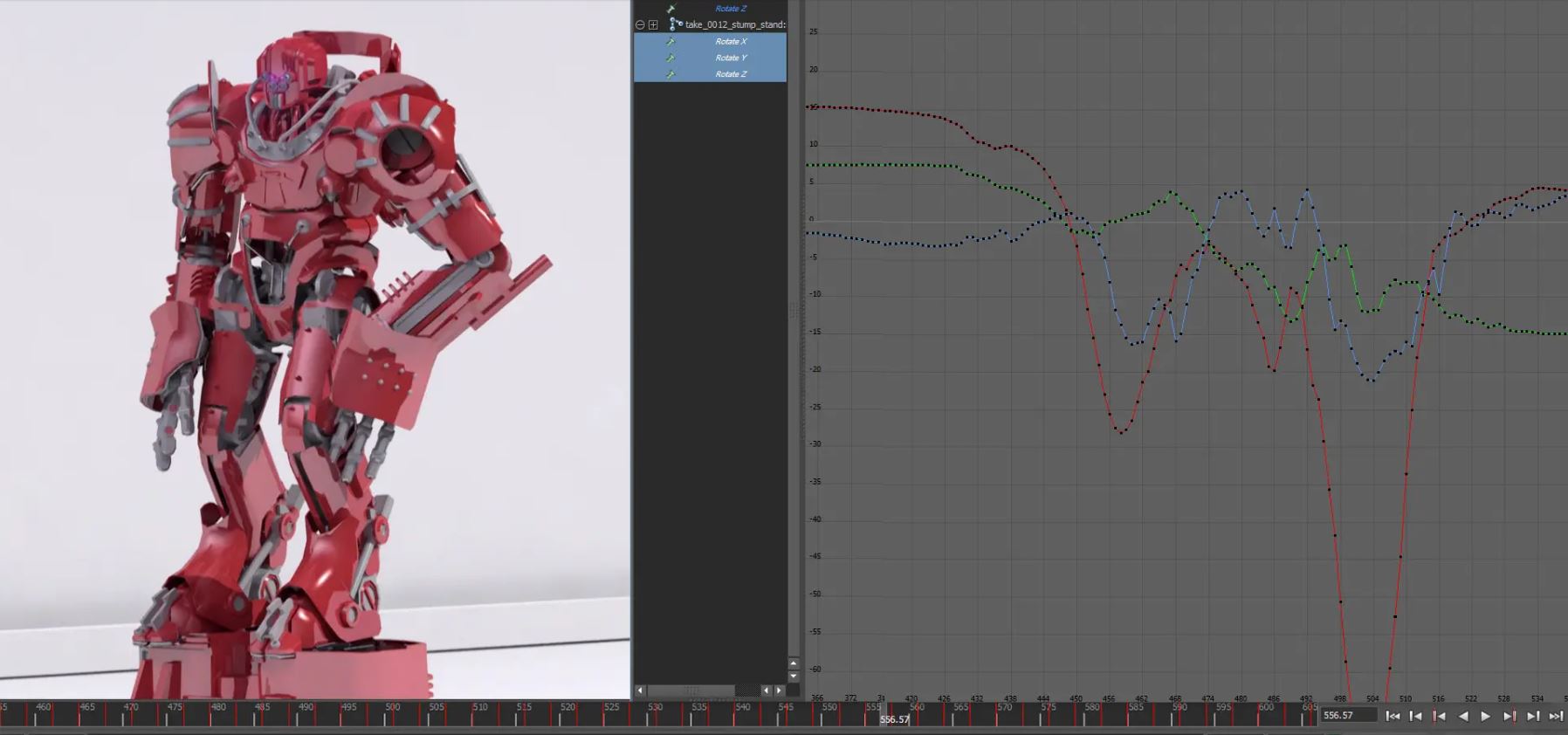

Live-stream Animation
You get free and unlimited access to all Shadow plugins for the following content creation software. View, record, and import character animation using tools you are already familiar with, no new software to learn.
|
|
Live-stream |
Retarget |
Controls |
|
Maya |
○ |
○ |
○ |
|
MotionBuilder |
○ |
○ |
○ |
|
Unity |
○ |
○* |
|
|
Unreal Engine |
○ |
○* |
|
|
Blender |
○ |
|
○ |
* Animation clip retargeting only
Flexible payment options
We offer our Shadow software license separately from the hardware. Choose a monthly or lifetime license term to fit your budget and production schedule.
The monthly license offers the lowest initial cost and greatest payment flexibility. You can start, stop, or pause your payments at any time.
An active license is required to capture new data from your Shadow system.
·Unlimited software license includes all platforms and plug-ins
·Monthly or lifetime terms
·Mocap on demand, pause monthly payments at any time
·Upgrade to a lifetime license after 2 years
2. Biomechanics

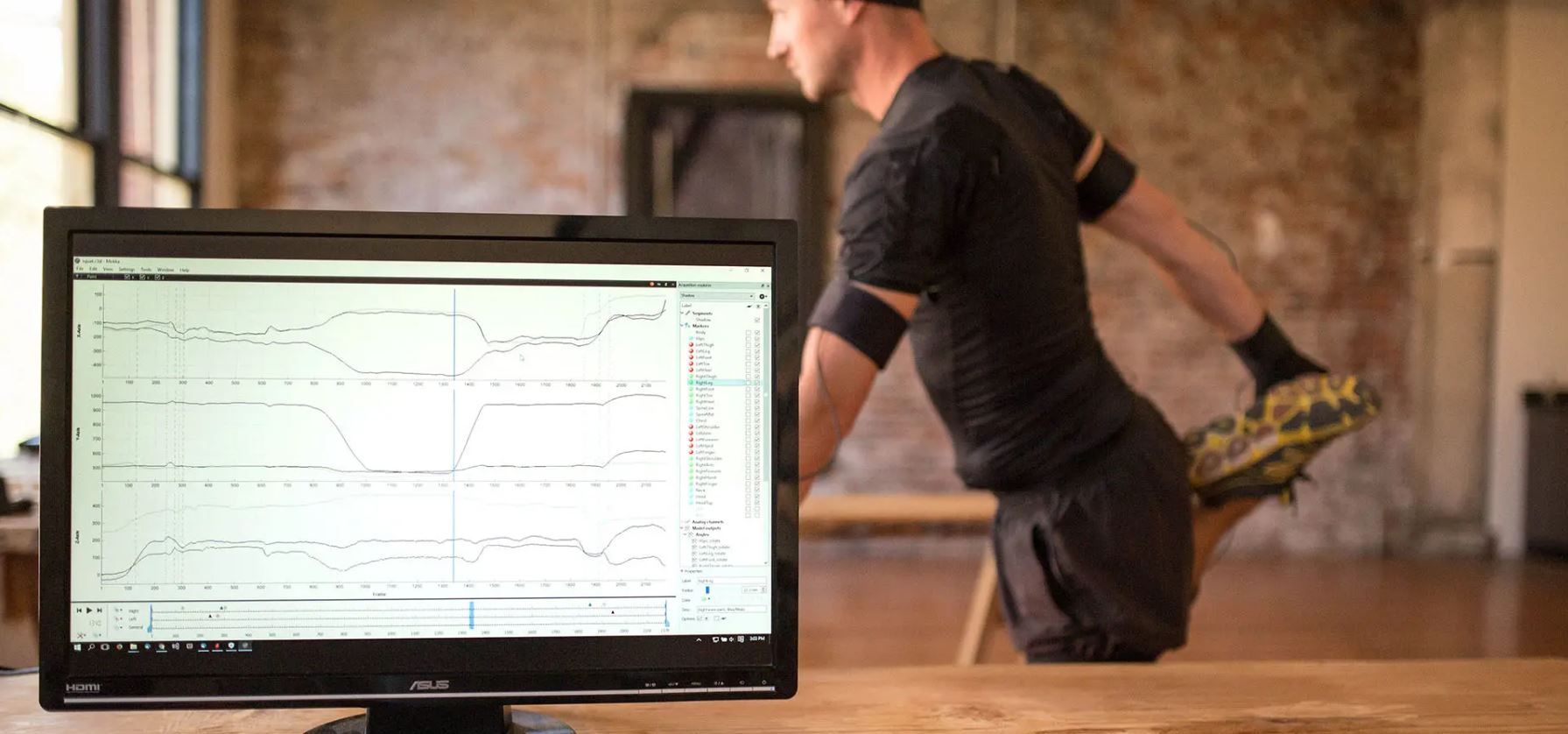

3D Human Kinematics
For researchers who need to capture human motion out in the field Shadow is a portable, durable system that can be used anywhere.
·17 precision inertial sensors
·Unlimited capture space
·Durable, high-quality wearable parts
·Open technology, full access to data streams
Untether your mocap sessions
Mobile device compatible
Live-stream and record on any Wi-Fi enabled device.
Portable and light-weight
Shadow weighs only 1.1kg and easily fits into a small bag or backpack for easy transport.
Record mocap anywhere
Capture all day to built-in storage. Drag and drop the data files to a computer for analysis.

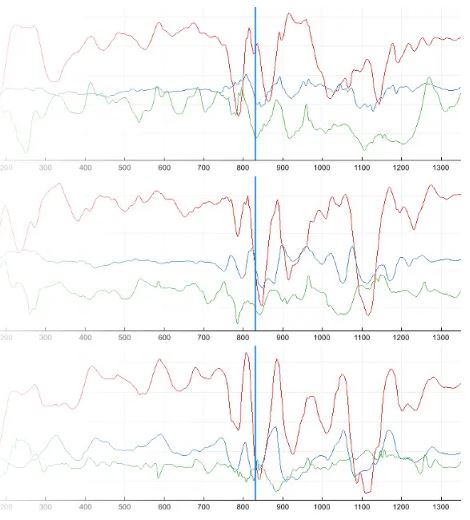

Fast, accurate motion data
The Shadow system uses the highest quality MEMS inertial components to provide low noise, high resolution output data for smooth and accurate orientation measurements.
The precision IMU sensors update at up to 1000 Hz, for low latency orientation response. Stream the calibrated sensor and orientation data at output rates up to 400 Hz.
·Cutting edge, precision inertial sensor technology
·High-precision inertial sensors
·4000 °/sec gyros will not saturate
·Responsive 1000 Hz internal update rate
·Low latency for interactive applications
Tech Specs
|
Sensors
17 precision inertial measurement units 3-axis accelerometer, gyroscope, and magnetometer 2 pairs pressure insoles |
Size
33 x 18 x 6 mm miniature sensors |
Wireless
Wi-Fi 802.11n Indoor Range 32 m (105 ft) Outdoor Range 95 m (310 ft) |
|
Sample rate
100, 200, or 400 Hz output data rate 1000 Hz internal update rate |
Weight

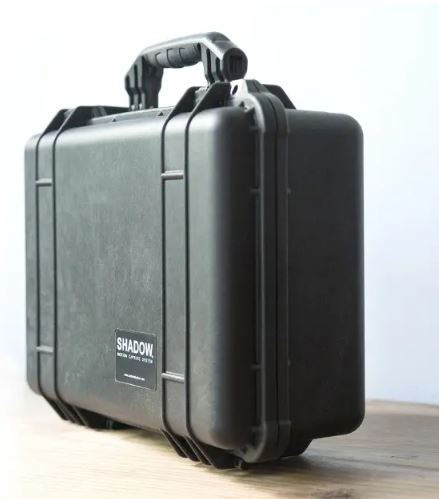

1.1 kg (2.4 lbs) wearable 6.5 kg (14.3 lbs) travel case |
Controller
32 GB storage Status LED
|
|
Orientation
Drift free, 3D rotation 0.5° static accuracy 2° dynamic accuracy |
Battery
8 hours 10 Ah capacity 2 packs and dual charger |
Latency
20 ms wireless (Wi-Fi) 5 ms wired (USB) |
Sensors
Each Shadow sensor is a precision inertial measurement unit (IMU) consisting of a high resolution, low noise accelerometer, gyroscope, and magnetometer.
Our sensors are made in the USA from U.S. and imported parts. We use only the highest quality miniature inertial sensors in our products.
|
|
Full Scale Range |
Resolution |
|
Accelerometer |
±2, 4, 8, 16 g |
0.18 mg |
|
Gyroscope |
±4000 °/s |
0.12 °/s |
|
Magnetometer |
±8 gauss |
0.25 mG |
System Requirements
Operating System
Works on Windows, macOS, Linux, iOS, and Android devices.
Connectivity
Requires a device with Wi-Fi 802.11n support or a USB Standard-A port.
Modern Web Browser
Some features require a browser with HTML5 support.
3. Virtual Reality
Full-Body Mocap for VR
Shadow® enables you to create cutting edge, immersive VR experiences in virtual reality or augmented reality. Shadow's lightweight, innovative design brings full-body motion capture to your VR application.
·Works on all operating systems and devices
·17 tracked body segments
·Low latency, high frame rate
·Open technology, full access to data streams
Supports popular game engines
Shadow works seamlessly with game engines such as UE4, Unity, and CRYENGINE, as well as 3D content creation apps. Both live-streaming and animation clip import are supported.
Interactive, VR ready motion data
VR hardware compatible
Use with Oculus Rift, HTC Vive, OSVR, Gear VR, and Daydream.
Low latency
Wi-Fi or USB connection for latency under 5ms.
High speed capture
Live-stream at 100, 200, or 400 frames per second. Sensors update at 1K.
Build custom apps with the included SDK
Access to all real-time data streams
Live-stream all body segments over Wi-Fi or USB with low latency.
Use your favorite platform and tools
The SDK supports C, C++, Java, C#, Python and more languages.
Examples and tutorials
Examples are included for common full-body data streaming app requirements.
Excellent warranty and support
Durable, high-quality construction
The durable wearable components are ergonomic and built to withstand daily production use.
Excellent support
You have access to timely support by phone, email, and video chat. We want our customers to succeed and are here to help.
Protect your investment
Every Shadow mocap suit includes a full 2-year warranty. During the warranty period, we will repair or replace your Shadow hardware at no cost.
Designed and manufactured in the USA
All orders and warranty replacements ship from Seattle for fast service.
