Dragonframe Bluetooth Controller
Wireless Keypad Controller
You asked. We listened.
Our new bluetooth keypad is wireless, shock resistant and super responsive.
It provides the functions you need to animate, in the location you need them—anywhere on set.

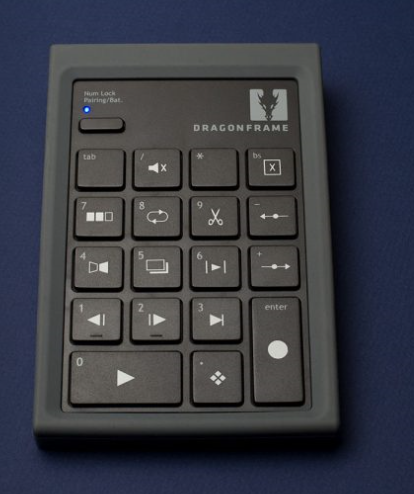

Dragonframe Bluetooth Controller
The most useful animation tools are available through the Dragonframe bluetooth keypad, allowing you to stay focused on animating instead of hunting around with the mouse. And the hotkeys are fully configurable, so if you really like a feature that is not on the keypad, you can move it there.
Note: Requires Bluetooth capabilities in your computer. Most modern laptops have this. If your machine does not, you can get a bluetooth USB adapter.
Features
Highly responsive scissor-mechanism keys.
Rubber moulding to protect against drops.
Ergonomic angled design.
Locator nubs on the Stepping keys.
Includes numbers for remote data entry with functions like Cut Back.
Specifications
Dimensions: 5.75″ x 3.75″ x 1.00″
Weight: 7 oz (with batteries)
Power: requires two AA batteries (included)
Setup Instructions – Mac
Open System Preferences and go to Bluetooth.
If it says “Bluetooth: Off”, press Turn Bluetooth On.
Turn your Dragonframe Bluetooth Controller over:
Flip the power switch to ON.
Press the CONN. button.
(The blue light on the front of the keypad should be flashing.)
The keypad should appear in the Bluetooth Devices list.
Select the keypad in the Devices list and press the Pair button.
Enter the number shown on screen using the bluetooth keypad and hit enter.
Your keypad should be paired and ready to use.
Setup Instructions – Windows
Find the Bluetooth icon in the toolbar, right-click it, and choose Add a Bluetooth Device. This will open Manage Bluetooth Devices.
Turn your Dragonframe Bluetooth Controller over:
Flip the power switch to ON.
Press the CONN. button.
(The blue light on the front of the keypad should be flashing.)
The keypad should appear as “Bluetooth Keypad” in the Manage Bluetooth Devices list.
Select the keypad and press the Pair button.
Enter the number shown on screen using the bluetooth keypad and hit enter.
Your keypad should be paired and ready to use.
